Type

Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder, liquid cooled

Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder, liquid cooled

Displacement

1,103 cc

1,103 cc

Bore x Stroke

81 x 53.5 mm

81 x 53.5 mm

Compression Ratio

14.0:1

14.0:1

Power

208 hp (153 kW) @ 13,000 rpm

208 hp (153 kW) @ 13,000 rpm

Torque

90.4 lb-ft (123 Nm) @ 9,500 rpm

90.4 lb-ft (123 Nm) @ 9,500 rpm

Fuel Injection

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.

Exhaust

4-2-1-2 system, with 2 catalytic converters and 2 lambda probes

4-2-1-2 system, with 2 catalytic converters and 2 lambda probes

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down EVO 2

6 speed with Ducati Quick Shift (DQS) up/down EVO 2

Primary drive

Straight cut gears; Ratio 1.80:1

Straight cut gears; Ratio 1.80:1

Ratio

1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24

1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24

Final drive

Chain; Front sprocket 15; Rear sprocket 42

Chain; Front sprocket 15; Rear sprocket 42

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder

Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder

Frame

Aluminum alloy "Front Frame"

Aluminum alloy "Front Frame"

Front suspension

Fully adjustable Showa BPF fork. 43 mm chromed inner tubes

Öhlins NIX30 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode

Front Wheel

5-spokes light alloy 3.50" x 17"

3-spokes forged aluminum alloy 3.50" x 17"

Front Tire

Pirelli Diablo Rosso IV Corsa 120/70 ZR17

Pirelli Diablo Rosso IV Corsa 120/70 ZR17

Rear suspension

Fully adjustable Sachs unit. Aluminum single-sided swingarm

Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm

Rear Wheel

5-spokes light alloy 6.00” x 17”

3-spokes forged aluminum alloy 6.00" x 17"

Rear Tire

Pirelli Diablo Rosso IV Corsa 200/60 ZR17

Pirelli Diablo Rosso IV Corsa 200/60 ZR17

Wheel Travel (Front/Rear)

4.7 in (120 mm) - 5.1 in (130 mm)

4.7 in (120 mm) - 5.1 in (130 mm)

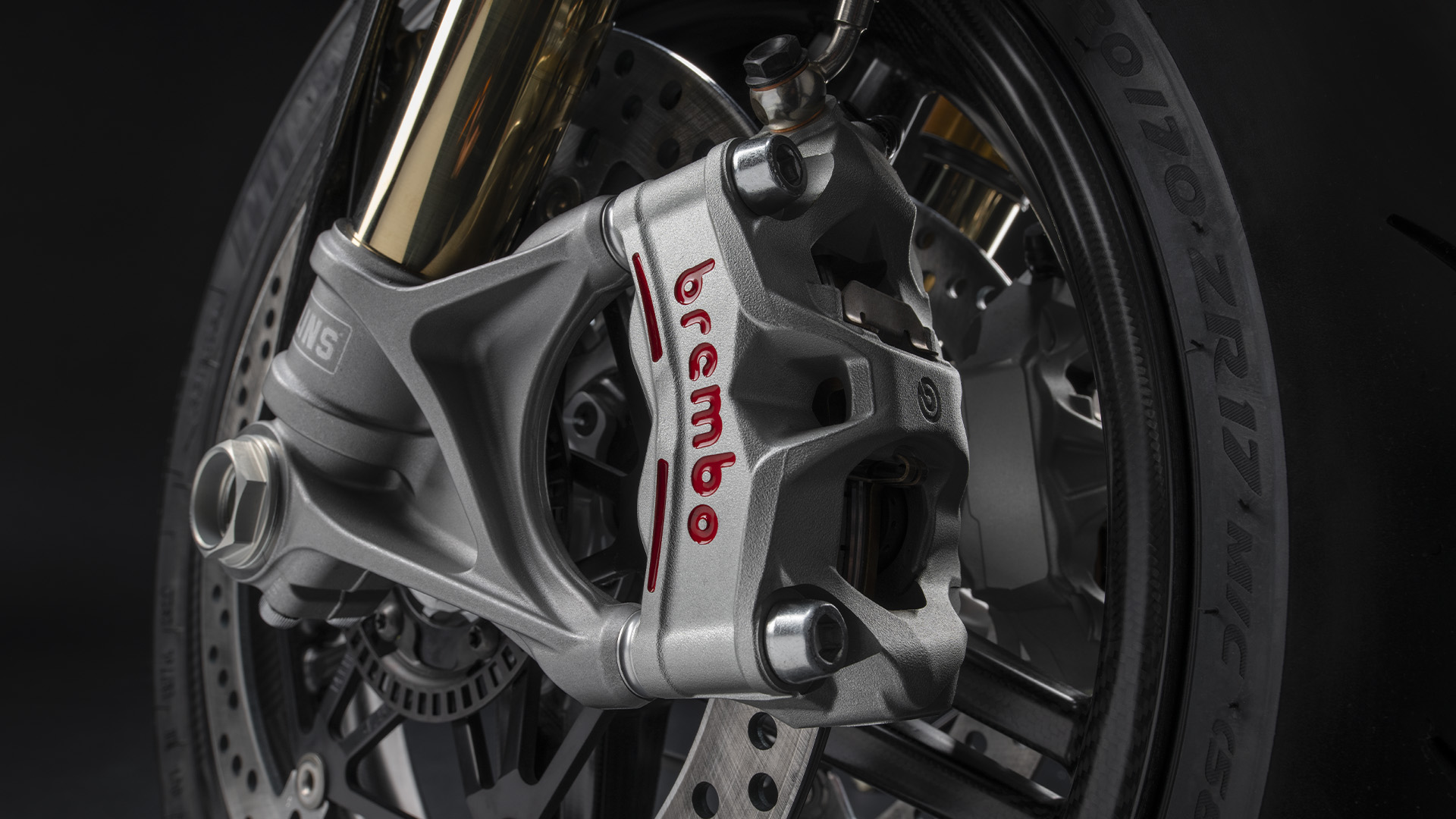

Front Brake

2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston calipers with Cornering ABS EVO. Self bleeding master cylinder.

2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) 4-piston calipers with Cornering ABS EVO. Self bleeding master cylinder.

Rear Brake

245 mm disc, 2-piston caliper with Cornering ABS EVO

245 mm disc, 2-piston caliper with Cornering ABS EVO

Instrumentation

Last generation digital unit with 5" TFT color display

Last generation digital unit with 5" TFT color display

Wet weight no fuel

430 lb (195 kg)

425 lb (193 kg)

Seat Height

33.3 in (845 mm)

33.3 in (845 mm)

Wheelbase

58.6 in (1,488 mm)

58.6 in (1.488 mm)

Rake

24.5°

24.5°

Trail

4 in (100 mm)

4 in (100 mm)

Fuel Tank Capacity

4.36 gallon (US) - 16.5 l

4.36 gallon (US) - 16.5 l

Number of Seats

Dual seats

Dual seats

Safety Equipment

Riding Modes, Power Modes, Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO 2, Auto tire calibration

Riding Modes, Power Modes, Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO 2, Auto tire calibration

Standard Equipment

Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL)*, Sachs steering damper, Quick adjustment buttons, Auto-off indicators, Passenger seat cover

Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL)*, Ducati Electronic Suspension (DES) EVO with Ohlins suspension and steering damper, Quick adjustment buttons, Auto-off indicators, Marchesini aluminum forged wheels, Lithium-ion battery, Passenger seat cover

Provided Equipment

Passenger seat and footpegs

Passenger seat and footpegs

Ready for

Ducati Data Analyzer+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Anti-theft, Heating grips, Turn-by-Turn navigation system

Ducati Data Analyzer+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Anti-theft, Heating grips, Turn-by-Turn navigation system

Warranty

24 months unlimited mileage

24 months unlimited mileage

Maintenance service intervals

7,500 mi (12,000 km) / 12 months

7,500 mi (12,000 km) / 12 months

Valve Clearance Check

15,000 mi (24,000 km)

15,000 mi (24,000 km)

Notes

*Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information

*Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
