Ducati powered by Thok

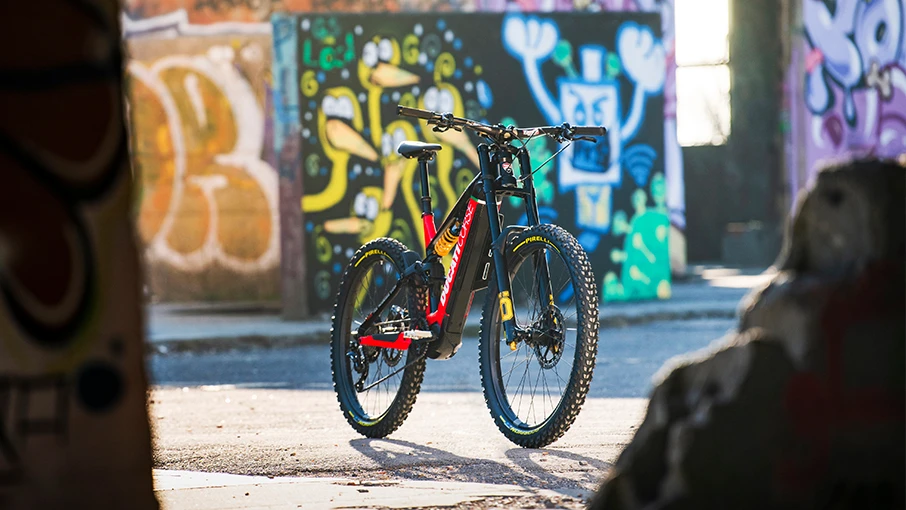

New TK-01RR

Price £6,360 i

The new TK-01RR is an e-enduro that adopts the most modern technical solutions, with the aim of making every riding phase exciting and letting you experience off-road in its maximum expression, even on the most inaccessible routes

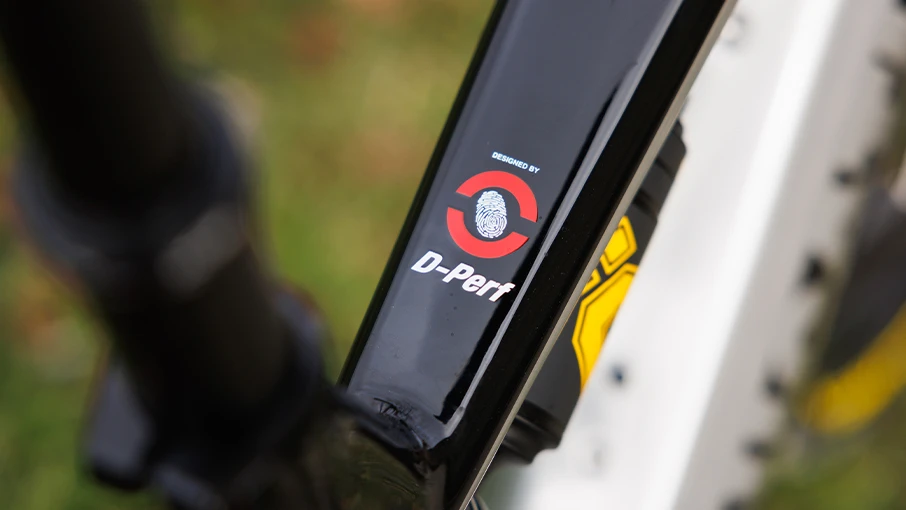

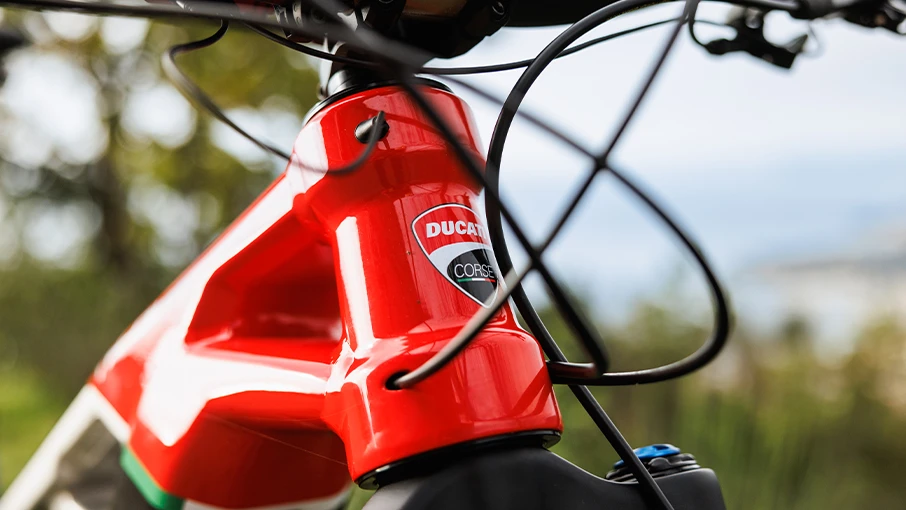

Frame
THOK 6061 T4 T6 Aluminium, Forged and CNC machined, headtube tapared 1.8, 29"/27,5" geometry, integrated down tube battery, enclosed internal cable, fully sealed cartridge bearing , 170 mm travel
Engine
SHIMANO - EP8 (250W - 85Nm)
Battery
SHIMANO 630 Wh with on/off Easy Touch

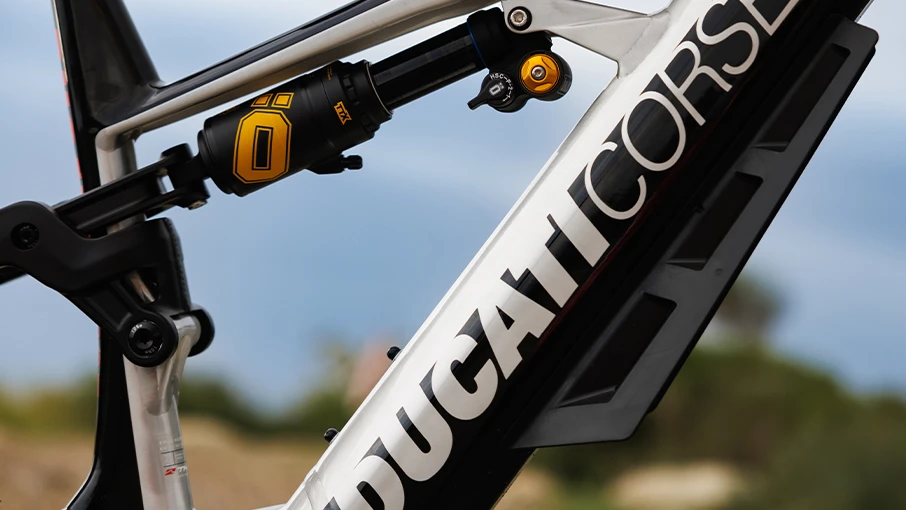

Suspensions
Front fork: Öhlins - RXF38 Air TTX18, Boost - 29", 15 x 110 mm, Offset 44, 38 mm chassis, 180 mm of travel, compression and rebound adjust Rear shock: Öhlins - TTX Air, metric 230 x 65 mm - custom tuned Ducati
Rear suspension layout
TPS Thok Progressive System (Horst Link)
Brake
SHIMANO - Deore XT 4 pistons calipter with Ice Technologies rotor ( increased performances) 203 mm diameter front and rear. Mineral oil.
Wheels
Front: CRANKBROTHERS - Synthesis - Alloy 29" x 31 mm Rear: CRANKBROTHERS - Synthesis - Alloy 27,5" x 35 mm
Tyres
Front: PIRELLI - Scorpion E-MTB S , TR, SmartGrip, HyperWall 29" x 2.6 Rear: PIRELLi - Scorpion E-MTB S , TR, SmartGrip, HyperWall, 27,5" x 2.6
Post Seat
KS - dropper post micro height adjustable, remote control (S:125 mm - M/150 L/XL:170 mm)
Handlebar
RENTHAL . Carbon 35 mm, rise 20 mm , 800 mm width
Weight
N/A
Display
SHIMANO - Display SC-E7000 LCD display with remote control E7000

Geometry

Size (mm)

S

M

L

XL

Seat Tube Length - center to Top

385

415

450

495

Top Tube Lenght , Orizzontal

582

600

629

660

Bottom Bracket Height (mm)

355

355

355

355

BB Drop (mm)

15

15

15

15

ChainStay Length (mm)

453

453

453

453

Seat Tube Angle

75,5°

 75,5°

 75,5°

 75,5°

Head Tube Angle

664.5°

 64.5°

 64.5°

 64.5°

Head Tube Length (mm)

105

115

131

149

Wheel Base (mm)

1212

1233

1265

1298

Stack (mm)

623

623

638

654

Reach (mm)

423

439

464

491

Crank Lenght (mm)

165

165

165

165

Stem Length (mm)

50

50

50

50

Handlebar Width (mm)

800

800

800

800

Fork Offset (mm)

44

44

44

44

Stand over

783

783

783

783

Trail

133.6

 133.6

 133.6

 133.6
