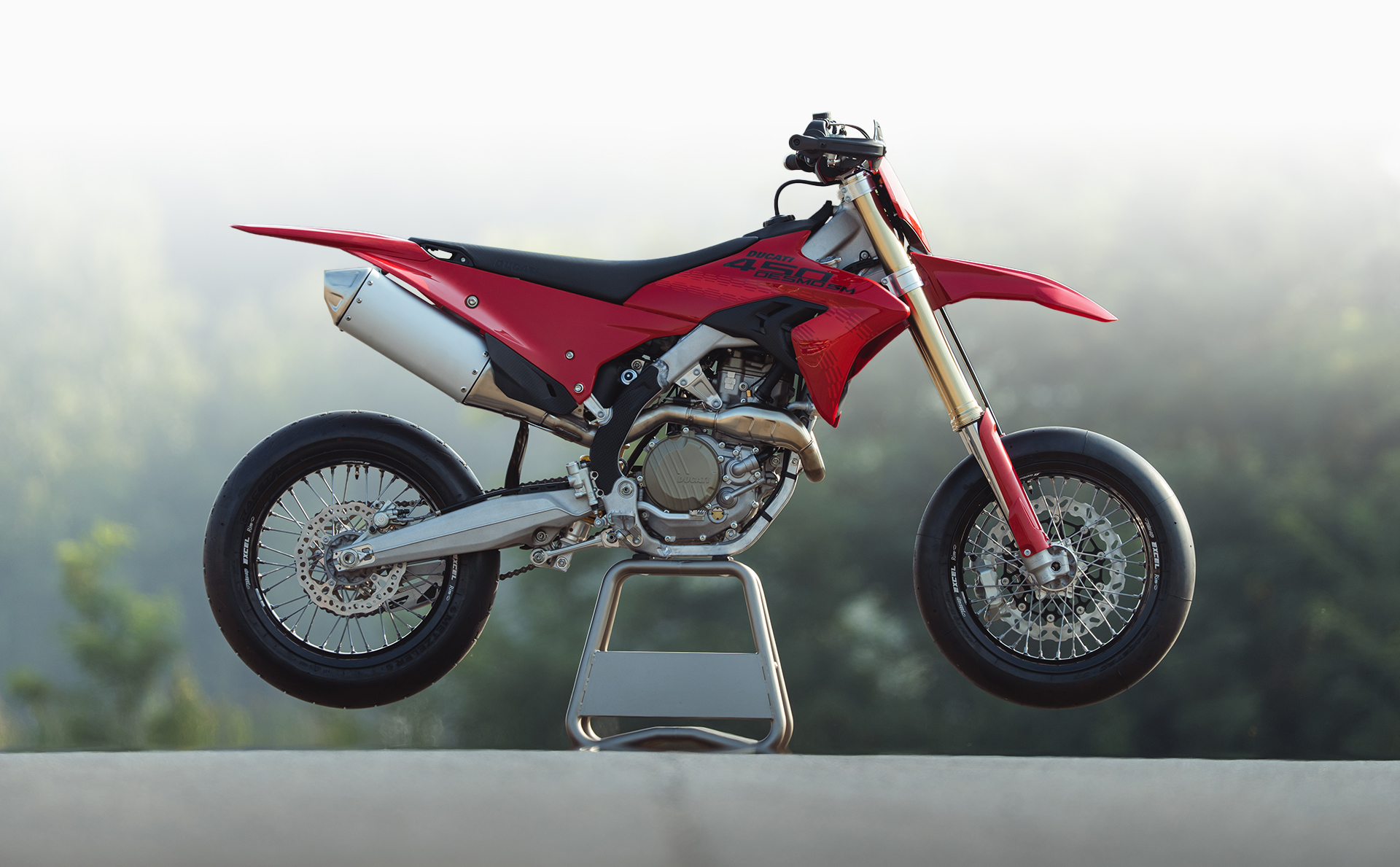

Desmo450 Engine
The Desmo450 SM is equipped with the 63.5 cc Desmo450 single-cylinder engine, designed to reach high engine speeds thanks to desmodromic timing and a limiter fixed at 11,900 rpm. Direct valve control ensures more precise management compared to traditional spring systems, reducing friction at low revs and allowing the engine to reach higher rpm. The result is greater efficiency out of the turns and the possibility to hold each gear for longer.
Supermotard Design
The Desmo450 SM integrates specific components designed for Supermotard use. The short front mudguard, dedicated fork protections and closed handguards do not just define its distinctive style but contribute to creating a bike designed to meet the demands of competition.
Showa premium suspension
Developed together with the Showa Road and Off-Road teams, Desmo450 SM suspension combines precision, lightness and response. The Ø 49 mm front fork and rear shock with progressive linkage ensure support under braking, stability when cornering and traction out of the turn. This makes for an intuitive and efficient bike that is ready to unleash its full potential on track.
Suter anti-hop clutch
The aluminium frame of the Desmo450 SM adopts an innovative construction with the minimum number of weld joints, developed to combine lightness, strength and precision. A solution derived from the Ducati Off-Road platform that contributes to the bike’s handling and the rider’s confidence during every riding phase.
Aluminium frame
The aluminium frame of the Desmo450 SM adopts an innovative construction with the minimum number of weld joints, developed to combine lightness, strength and precision. A solution derived from the Ducati Off-Road platform that contributes to the bike’s handling and the rider’s confidence during every riding phase.
Advanced, performance-oriented electronics
Complete with Ducati Traction Control that is Supermotard-specific, Engine Brake Control, Power Launch, Quick Shift and two configurable Riding Modes, the Desmo450 SM allows the rider to precisely adapt the bike’s response to their needs. The Wi-Fi module available as an accessory further extends the vehicle customisation and monitoring options via smartphone.
Metzeler Racetec SM tyres
The Desmo450 SM mounts Metzeler Racetec SM tyres, the same used in the Supermotard 1 World Championship. A Racetec SM K2 125/75 R420 ensures better support at the front, while a Racetec SM K1 165/55 R17 guarantees maximum grip at the rear.
| Desmo450 SM | |
|---|---|
| Moteur | |
| Type | Desmo450, monocylindre, distribution desmodromique à 4 soupapes et double arbre à cames en tête (DOHC), tendeurs hydrauliques, carter semi-sec, refroidissement par liquide |
| Cylindrée | 449.6 cc (27.4 cu in) |
| Alésage x course | 96 mm x 62.1 mm (3.8 in x 2.4 in) |
| Ratio de compression | 13.5:1 |
| Puissance | 63.5 ch (46.7 kW) @ 9,400 tr/min |
| Couple | 53.5 Nm (5.5 kgm, 39 lb ft) @ 7,500 tr/min |
| Injection | Injecteur Keihin, corps de papillon Mikuni Ø 44 mm |
| Échappement | Silencieux en acier avec manchon extérieur en aluminium, collecteur en acier avec résonateur |
| Transmission | |
| Boîte de vitesse | 5 rapports avec Quick Shift up |
| Transmission primaire | Engrenages à denture droite ; rapport de transmission 2,45:1 |
| Ratio | 1=31/15, 2=30/18, 3=28/20, 4=26/22, 5=24/24 |
| Transmission finale | Chaîne DID DMS 520, pignon avant Z15, pignon arrière en aluminium Z47 |
| Embrayage | Embrayage à glissement Suter. Commande hydraulique Brembo |
| Chassis | |
| Cadre | En aluminium soudé, avec des pièces moulées, forgées et extrudées |
| Suspension avant | Fourche avant inversée Showa, Ø 49 mm, entièrement réglable. Tube extérieur avec revêtement Kashima |
| Roue avant | Roue tubeless à rayons, jante Takasago Excel 3,5"" x 16,5"". Système BarTubless. |
| Pneu avant | Racetec SM K2 125/75R420 |
| Suspension arrière | Amortisseur mono Showa, entièrement réglable |
| Roue arrière | Roue tubeless à rayons, jante Takasago Excel 5,0'“ x 17”'. Système BarTubeless. |
| Pneu arrière | Racetec SM K1 165/55R17 |
| Débattement roue avant/arrière | 280 mm / 295 mm (11 in / 11.6 in) |
| Frein avant | Disque flottant simple Galfer de Ø 310 mm avec bride en aluminium, étrier radial Brembo Stylema |
| Frein arrière | Disque simple Galfer de Ø 240 mm, étrier flottant Brembo à 1 piston |
| Tableau de bord | Compteur d'heures |
| Dimensions et poids | |
| Poids en ordre de marche sans carburant | 109 kg (240 lb) |
| Hauteur de selle | 930 mm |
| Empattement | 1,483 mm (58.4 in) |
| Angle de chasse | 25.4° |
| Chasse | 85 mm (3.3 in) |
| Capacité du réservoir | 7.2 l (1.9 US gal) |
| Nombre de places | 1 |
| Equipement | |
| Équipement de sécurité | Modes de conduite, contrôle de traction Ducati (DTC), contrôle du frein moteur (EBC), détection de chute Ducati |
| Equipement de série | Quick shift up, batterie lithium-ion, Power Launch, compteur d'heures, sélecteur de mode |
| Pré-équipement | Module Wi-Fi et application X-Link |
| Garantie | |
| Garantie | Garantie standard Ducati : 3 mois ou 20 heures d'utilisation |
Les photos et les images de certains composants peuvent se référer à des prototypes susceptibles de subir des modifications, même de nature significative, au cours du processus d'industrialisation et ne sont données qu'à titre d'information et de référence ; elles n'engagent donc en rien Ducati Motor Holding S.p.A. - Société actionnaire unique, soumise aux activités de gestion et de coordination d'Audi AG - (ci-après « Ducati »).
