Aruba.it

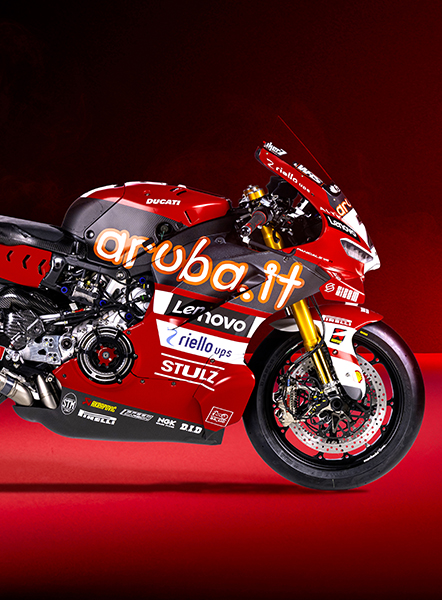

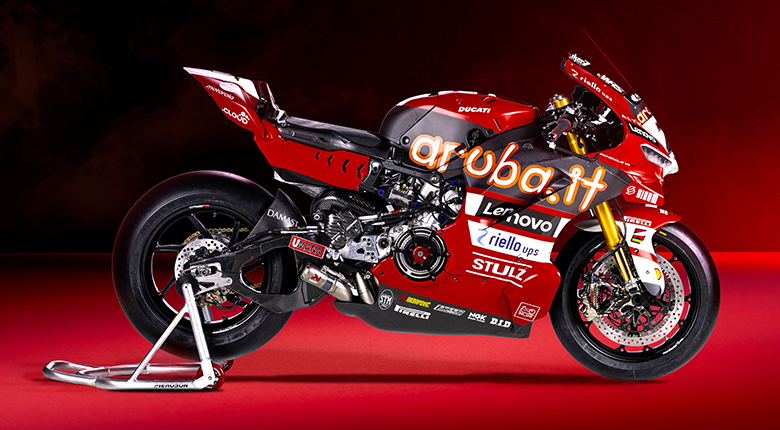

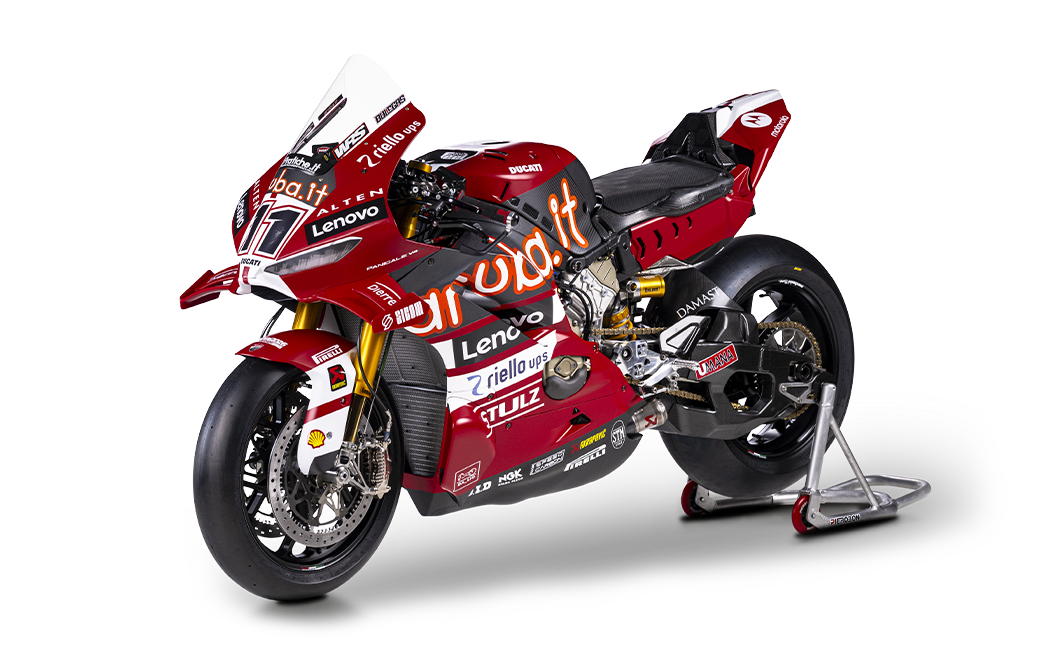

Panigale V4 R

 Engine

4-stroke, V4 90°

Capacity

998 cm³

Bore x Stroke

 81 x 48.4 mm

Timing system

Desmodromic, 4 valves per cylinder

Cooling system

Liquid cooled

Engine management

Electronic Ignition-injection ECU Magneti Marelli ML

Fuel injection

Electronic injection system, independent motorized elliptical throttle bodies

Injectors

Continental with aerodynamic butterfly valves, twin injectors for each cylinder

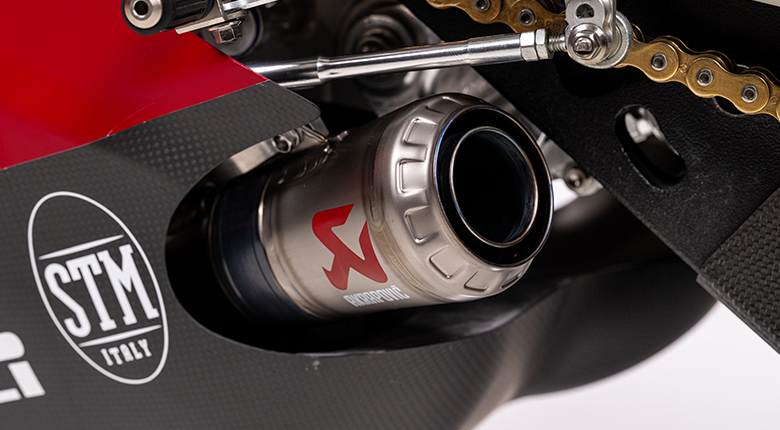

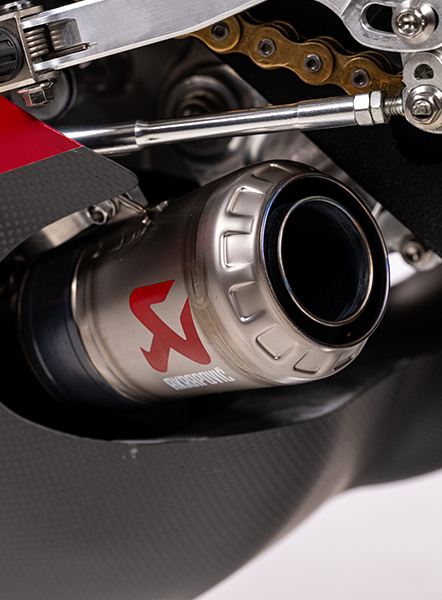

Exhaust system

Akrapovič titanium 4-2, with two titanium mufflers.

Power

> 235 bhp at 16,000 rpm at the crankshaft

Maximum speed

>315km/h

Lubrification

Gear oil pump

Frame

Aluminium front frame

Suspensions

46 mm pressurized RVP2530 upside-down Öhlins fork, single-side aluminium swingarm, with Öhlins RSP50 shock absorber

Wheels

Marchesini aluminium forged wheels 3.50×17’’ front and 6.00×17’’ rear

Gearbox

6 speed, straight cut gears

Clutch

STM dry multi-plate slipper clutch with hydraulic control

Chain

D.I.D.

Brakes

Front: Brembo radial P4X30-34 calipers, two Ø 336mm floating discs. Rear: Brembo radial P2X24 caliper, one 230mm Ø disc

Tyres

Front: Pirelli slick 120/70-R17
Rear: Pirelli slick 200/60-R17

Length

2070mm

Width

670mm


Dry weight

168kg with water and oil

Wheelbase

1450mm

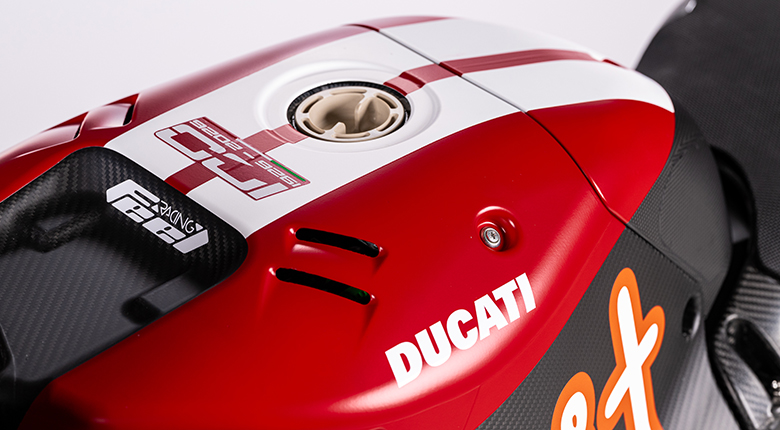

Fuel tank capacity

23,9 litres
