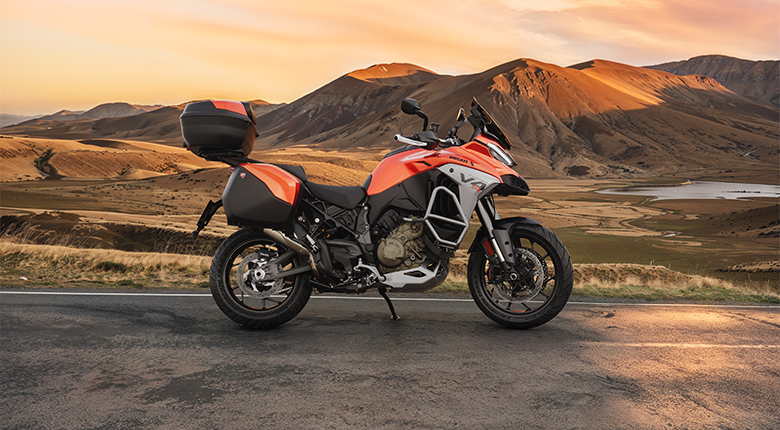

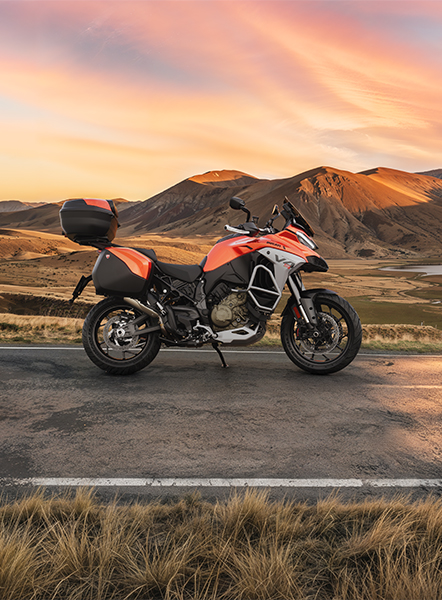

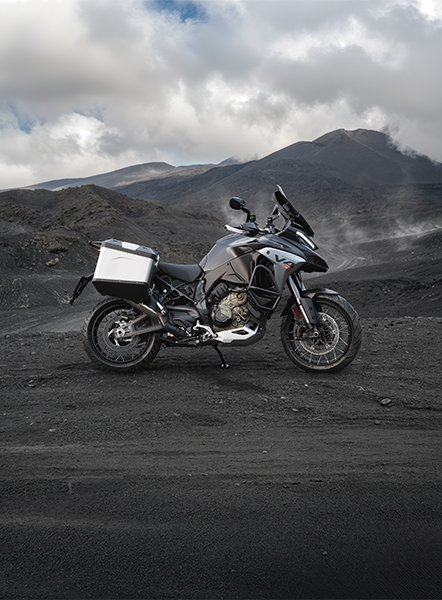

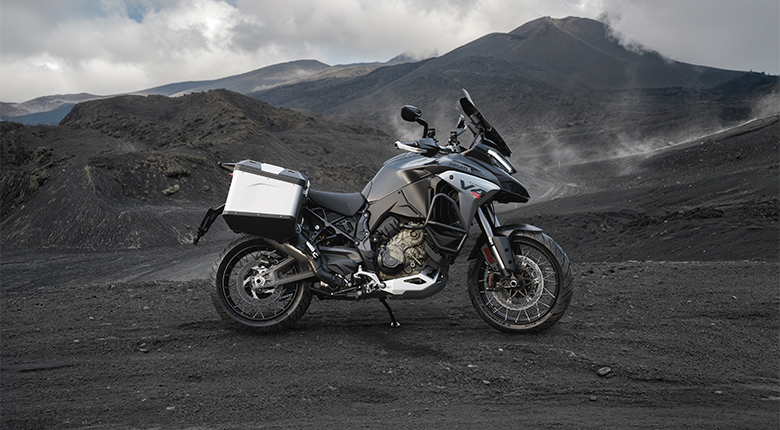

Multistrada V4

Engine

V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled

V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled

V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled

Dispalcement

1,158 cc (71 cu in)

1,158 cc (71 cu in)

1,158 cc (71 cu in)

Bore X Stroke

83 mm x 53.5 mm

83 mm x 53.5 mm

83 mm x 53.5 mm

Compression ratio

14.0:1

14.0:1

14.0:1

Power

170 hp (125 kW) @ 10,500 rpm

170 hp (125 kW) @ 10,500 rpm

170 hp (125 kW) @ 10,500 rpm

Torque

12.7 kgm (125 Nm, 92 lb ft) @ 8,750 rpm

12.7 kgm (125 Nm, 92 lb ft) @ 8,750 rpm

12.7 kgm (125 Nm, 92 lb ft) @ 8,750 rpm

Fuel Injection

Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system

Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system

Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system

Exhaust

Stainless steel muffler, double catalytic converter and 4 lambda probes

Stainless steel muffler, double catalytic converter and 4 lambda probes

Stainless steel muffler, double catalytic converter and 4 lambda probes

Gearbox

6 speed

6 speed

6 speed

Primary drive

Straight cut gears, ratio 1.8:1

Straight cut gears, ratio 1.8:1

Straight cut gears, ratio 1.8:1

Ratio

1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25

1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25

1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25

Final drive

Chain, front sprocket z16, rear sprocket z42

Chain, front sprocket z16, rear sprocket z42

Chain, front sprocket z16, rear sprocket z42

Clutch

Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run

Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run

Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run

Frame

Aluminum monocoque frame

Aluminum monocoque frame

Aluminum monocoque frame

Front suspension

Ø 50 mm fully adjustable usd fork

Ø 50 mm fully adjustable usd fork, electronic compression and rebound damping adjustment with Ducati Skyhook Suspension

Ø 50 mm fully adjustable usd fork, electronic compression and rebound damping adjustment with Ducati Skyhook Suspension

Front wheel

Light alloy cast, 3" x 19"

Light alloy cast, 3" x 19"

Light alloy cast, 3" x 19"

Front tyre

Pirelli Scorpion Trail II 120/70 ZR 19

Pirelli Scorpion Trail II 120/70 ZR 19

Pirelli Scorpion Trail II 120/70 ZR 19

Rear Suspension

Fully adjustable monoshock, Remote spring preload adjustment, aluminium double-sided swingarm

Fully adjustable monoshock, electronic adjustment with Ducati Skyhook Suspension, aluminium double-sided swingarm

Fully adjustable monoshock, electronic adjustment with Ducati Skyhook Suspension, aluminium double-sided swingarm

Rear Wheel

Light alloy cast, 4.5" x 17"

Light alloy cast, 4.5" x 17"

Light alloy cast, 4.5" x 17"

Rear tyre

Pirelli Scorpion Trail II 170/60 ZR 17

Pirelli Scorpion Trail II 170/60 ZR 17

Pirelli Scorpion Trail II 170/60 ZR 17

Wheel travel (front/rear)

170 mm / 180 mm (6.7 in / 7.1 in)

170 mm / 180 mm (6.7 in / 7.1 in)

170 mm / 180 mm (6.7 in / 7.1 in)

Front Brake

2 x Ø 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston 2-pad callipers, radial master cylinder, Cornering ABS

2 x Ø 330 mm semi-floating discs, radially mounted Brembo M50 Stylema monobloc 4-piston 2-pad callipers, radial master cylinder, Cornering ABS

2 x Ø 330 mm semi-floating discs, radially mounted Brembo M50 Stylema monobloc 4-piston 2-pad callipers, radial master cylinder, Cornering ABS

Rear brake

Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS

Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS

Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS

Instrumentation

5" TFT colour display

6.5" TFT colour display with Ducati Connect and full-map navigation system

6.5" TFT colour display with Ducati Connect and full-map navigation system

Kerb weight

240 kg (529 lb)

243 kg (536 lb)

242 kg (533 lb)

Seat height

Adjustable, 840 mm - 860 mm (33.1 in - 33.9 in)

Adjustable, 840 mm - 860 mm (33.1 in - 33.9 in)

Adjustable, 840 mm - 860 mm (33.1 in - 33.9 in)

Wheelbase

1,567 mm (61.7 in)

1,567 mm (61.7 in)

1,567 mm (61.7 in)

Rake

24.5°

24.5°

24.5°

Trail

102.5 mm (4.0 in)

102.5 mm (4.0 in)

102.5 mm (4.0 in)

Fuel tank capacity

22 l (5.8 US gal)

22 l (5.8 US gal)

22 l (5.8 US gal)

Number of seats

2

2

2

Safety equipment

Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Brake Light

Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control

Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light, Vehicle Hold Control

Standard equipment

Backlit handlebar switches, 5" TFT colour display

Ducati Skyhook Suspension, Ducati Quick Shift, Cruise control, Hands-free, Backlit handlebar switches, 6.5" TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight

Ducati Skyhook Suspension, Ducati Quick Shift, Cruise control, Hands-free, Backlit handlebar switches, 6.5" TFT colour display with Ducati Connect and full-map navigation system, Full LED headlight, Carbon fiber front mudguard, Type-approved Akrapovic muffler

Warranty

24 months (48 months*), unlimited mileage
* Only for countries where 4ever Multistrada warranty applies.

24 months (48 months*), unlimited mileage
* Only for countries where 4ever Multistrada warranty applies.

24 months (48 months*), unlimited mileage
* Only for countries where 4ever Multistrada warranty applies.

Maintenance

15,000 km (9,000 miles) / 24 months

15,000 km (9,000 miles) / 24 months

15,000 km (9,000 miles) / 24 months

Valve clearance check

60,000 km (36,000 miles)

60,000 km (36,000 miles)

60,000 km (36,000 miles)

Standard

Euro 5 (Only for countries where Euro 5 standard applies)

Euro 5 (Only for countries where Euro 5 standard applies)

Euro 5 (Only for countries where Euro 5 standard applies)

CO2 emissions

162 g/km

162 g/km

162 g/km

Consumption

6.5 l/100 km

6.5 l/100 km

6.5 l/100 km
